RAM Cargo Vans:
High-Capacity Swivel Loading Ramps
"PC Series" by WM System
Application Guide
Model | Description | Stored
height
(in) | Unit Weight (lbs) | W
(in) | L
(in) | Capacity
(lbs) | Promaster Super High Roof | Load Angle | Promaster High Roof | Load Angle | Promaster Low Roof | Load Angle | Promaster City |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
91617 | PC Series Ramp, High capacity, Solid surface, LH swivel, 2 section | 54 | 240 | 47 | 98 | 2200 | ✔ | 12° | ✔ | 12° | ✔ | 12° | |
91548 | PC Series Ramp, High capacity, Solid surface, LH swivel, 2 section | 58 | 258 | 47 | 108 | 2200 | ✔ | 11° | ✔ | 11° | |||
91729 | PC Series Ramp, High capacity, Solid surface, LH swivel, 2 section | 69 | 300 | 47 | 128 | 3300 | ✔ | 9° | ✔ | 9° | |||
81605 (extension) | PC Series Ramp Extension, High capacity, Solid surface, Compatible with any PC series ramp, Removable 3rd section extension | 49 | 110 | 47 | 49 | 3300 | ✔ | - | ✔ | - | ✔ | - |

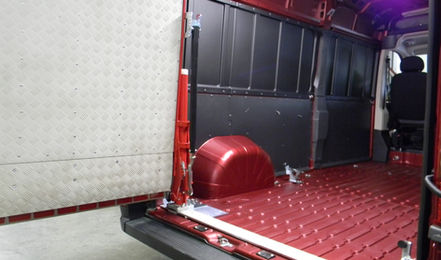

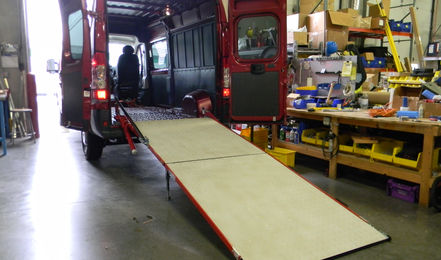

Image Gallery
ProMaster High Roof
ProMaster Low Roof
